MOORLINK BALL SWIVELS

vryhof(product.headerbeelden)(1920x845px)(ball SWIVEL).1

Avoid damage to rig wires

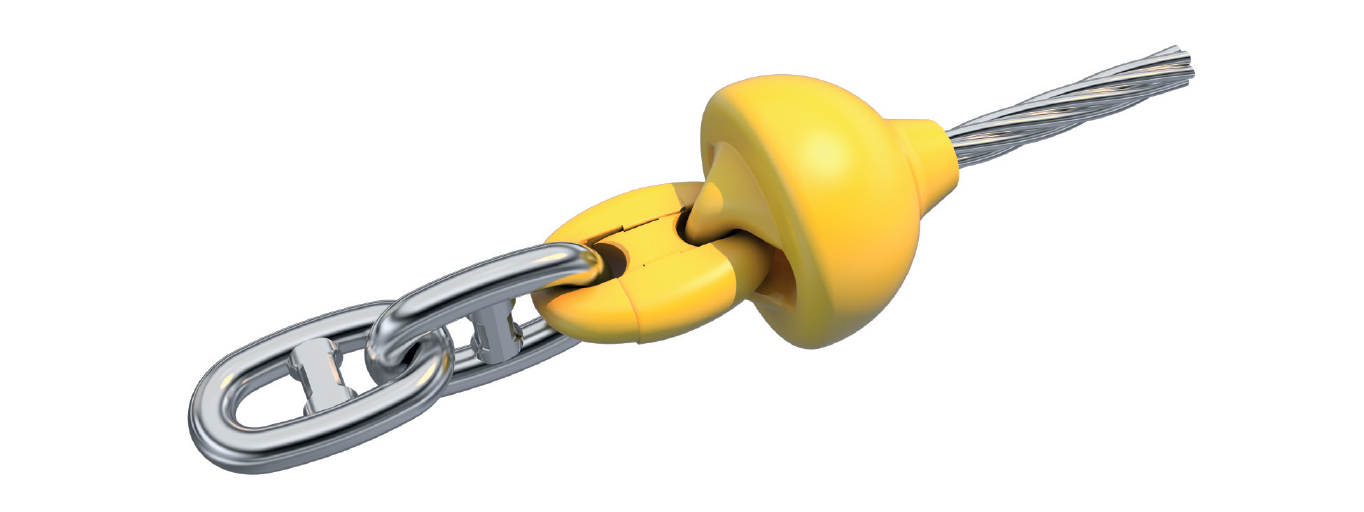

The MoorLink compact multi-functional ball swivel combines a wire socket, swivel and chain connector in one very simple unit. The device is designed to avoid damage to the rig wire during disconnection of the combined wire/chain system, absorbing the torque built up in the wire. The ball swivel has been designed to minimize bending forces on the wire as the chain and wire pass around the fairlead sheave.

Type303123208389334376
A (mm)767676839090
B (mm)458462474474481501
C (mm) C (inch)70
(2.75)
83  (3.25)83 (3.25)83 (3.25)89  (3.5)89
(3.5)
D (mm)508427427427559457
MBL (kN)530051605160608564506450

The units are built in forged or cast grade 4 steel and CNC machined to final dimension. This method makes it very easy to tailor make the outer geometry to suit different far lead sheaves. All MoorLink ball swivels are approved by the certifying authorities.

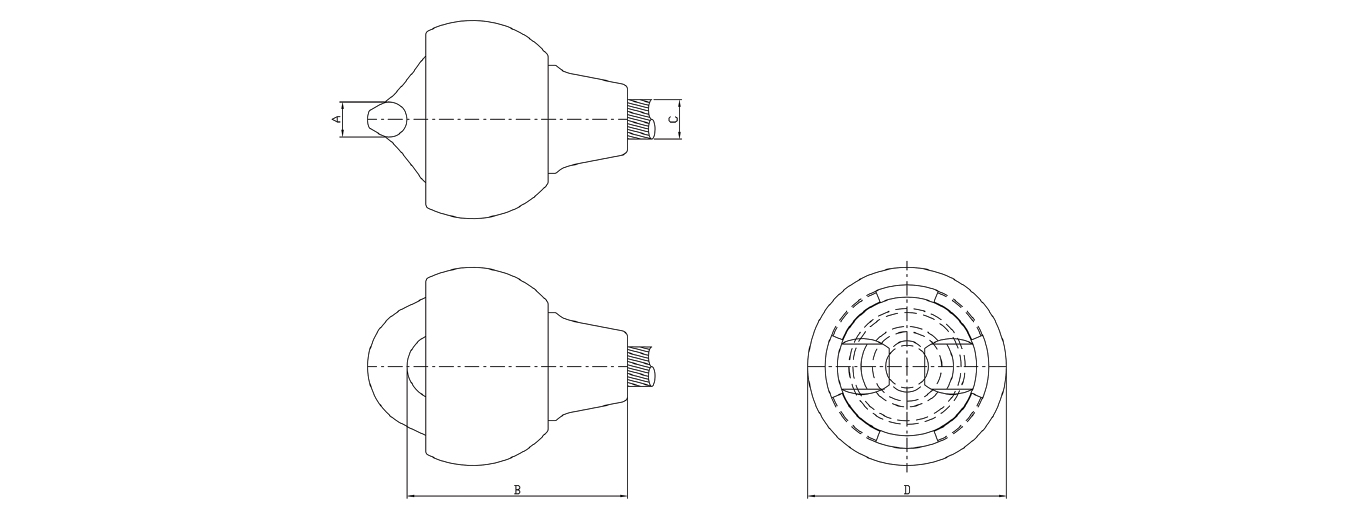

See drawings and type examples listed below.

Type322399381353356300
A (mm)88889099.58894
B (mm)508532522677508508
C (mm) C (inch)89 (3.5)89
(3.5)
95
(3.75)
95
(3.75)
95  (3.75)95
(3.75)
D (mm)559553504640559559
MBL (kN)699072106583721072107950

Forged or cast grade 4 steel
Certified by ABS, DNV GL or others

Please note: Other certified types and sizes are available upon request.

Download Moorlink
product catalogue

The items in this catalogue shows the most commonly produced products and should serve as an overview of the MoorLink assortment.
